Thermaglaze 30 (FD30)

Regular price
£10.00
Sale price
£10.00
Regular price

Shipping & Returns

Free shipping available on orders over £1,500! 14 days return on stock product. Delivery charges are non-refundable.

Thermaglaze 30 (FD30)Thermaglaze 30 (FD30)Thermaglaze 30 (FD30)

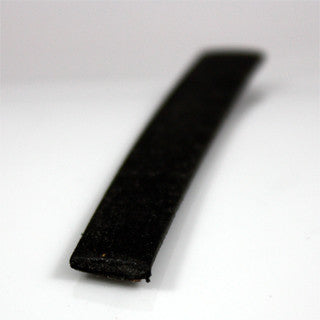

Therm-a-Glaze 30 is a flexible, dry intumescent glazing strip, 10 x 2 mm in section, supplied in 2100 mm lengths. It fits between the fire-resisting glass and the glazing beads.

Cut it to length with a sharp knife or scissors and stick it to the inside face of each bead with its self-adhesive backing. No adhesive or sealant is needed.

Fire rating

Certified for glazing in FD30 timber doors with nominally 44 mm leaves, for 30 minutes integrity (no insulation rating) to BS 476: Part 22: 1987. Panes up to 900 mm high x 600 mm wide (0.54 m²) in Pyroshield 2, Pyrostem, Pyran S 6 mm or Pyrobelite 7 mm, or up to 875 mm high x 600 mm wide (0.525 m²) in Pyrodur Plus 7 mm. Fit it with hardwood beads (23 x 23 mm including a 5 x 5 mm bolection return, chamfered about 20 degrees, at least 650 kg/m³), non-combustible or hardwood setting blocks and No. 8 screws 50 mm long at 150 mm centres. The door itself must be Certifire approved or fire tested with an aperture of that size. CF284 does not cover it for use in screens.

Certifire certificate

  • CF284 (Dixon International Group), valid to 10th Jun 2030
