Maple Glazing Bead FD60

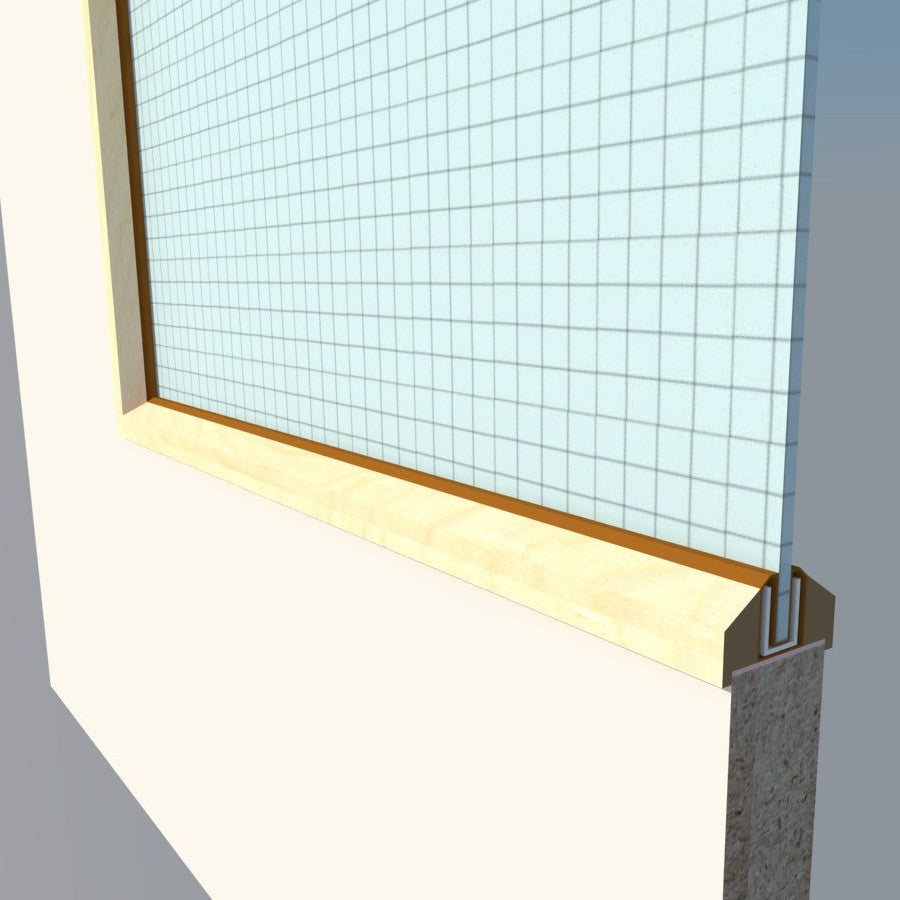

This Maple foil wrapped bead is certified to glaze vision panels up to 0.54 metres squared (maximum 1552mm in height or 375mm in width)
- This bead is made to suit 54mm doors.
- Can be used with most FD30 glasses including Pyroguard, Pyrobelite, Pyrosec 7/30, Pyrodur Plus, Pyrostem Wired & Pyroshield Wired Safety glass.
- Bead comes in 2000mm lengths for minimum waste-age.
- Bead comes in two different systems: System 90 or 6mm Foamtape
- If using GWPP (Wired Pyrostem Glass 6mm thick) then choose: System 90
- if using C1160 (Clear Pyroguard 11.4mm thick) or thicker glass, then choose: 6mm Foamtape
This bead works with our Lorient System 90 gasket. (will be required if using GWPP glass for FD60 rated 54mm doors)
