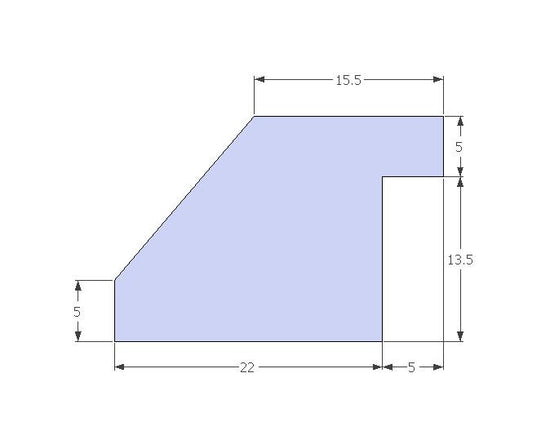

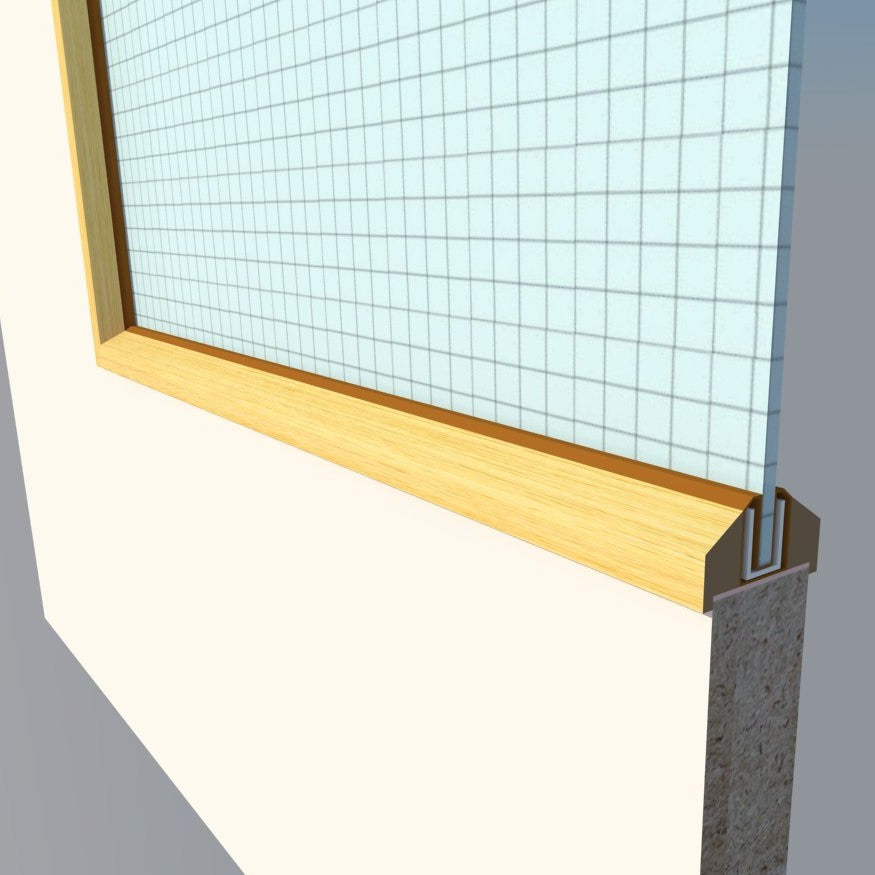

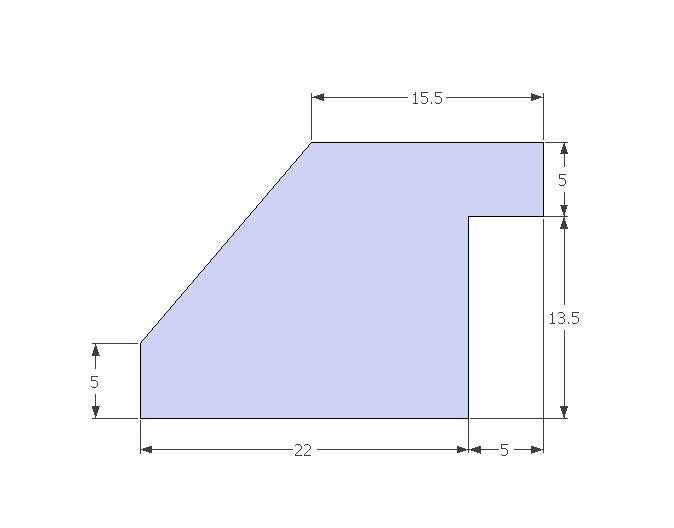

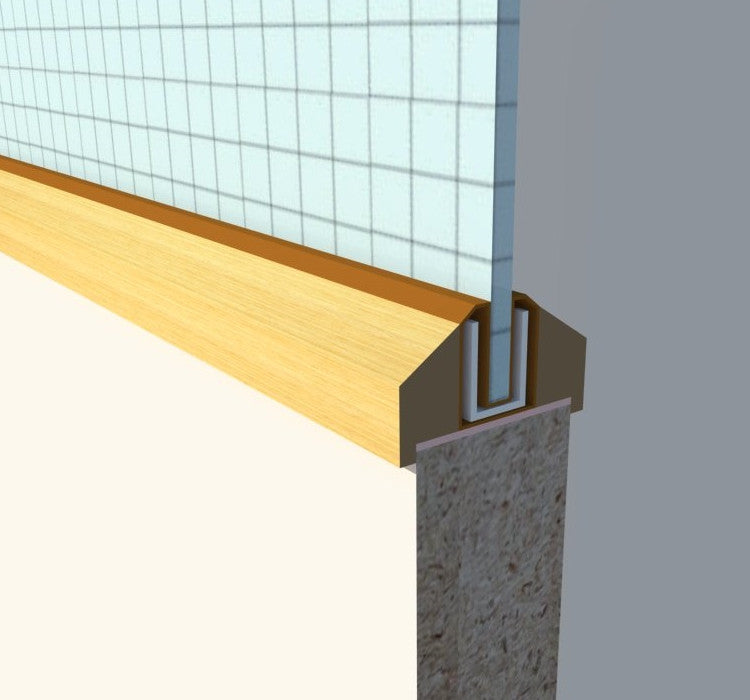

This Koto foil-wrapped bead is certified to glaze vision panels up to 0.54 metres squared (maximum 1552mm in height or 375mm in width).

• This bead is made to suit 54mm doors.
• Bead comes in 2000mm lengths for minimum wastage.
• Bead comes in two different systems: System 90 or 6mm Foamtape
• If using GWPP (Wired Pyrostem Glass 6mm thick) then choose: System 90
• if using C1160 (Clear Pyroguard 11.4mm thick), then choose: 6mm Foamtape

This bead works with our Lorient System 90 gasket. (will be required if using GWPP glass for FD60 rated 54mm doors)
