10G Vision Panel
The 10G is a modern aperture for use primarily in commercial buildings.

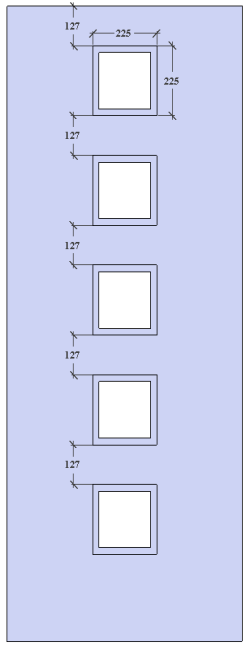

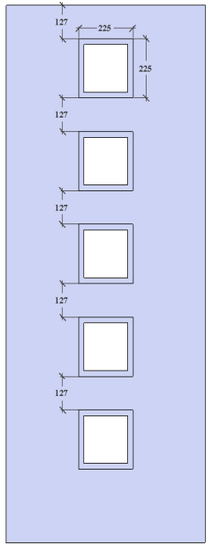

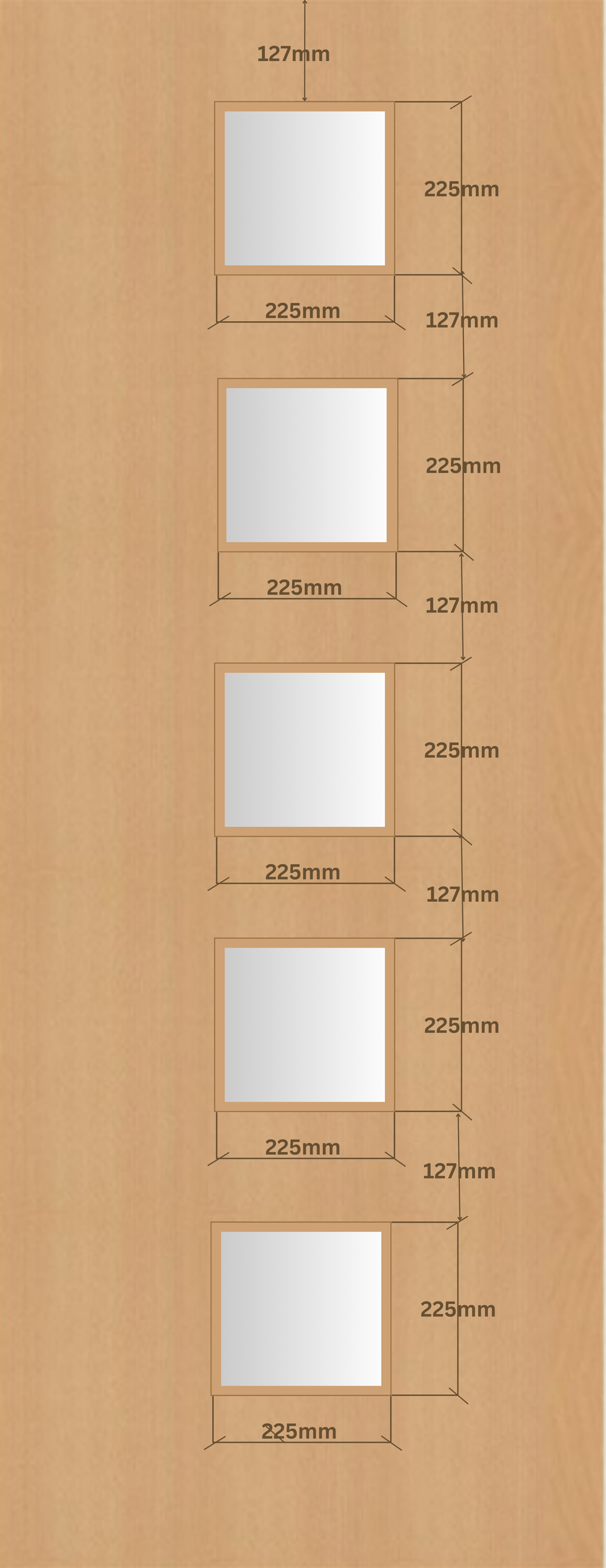

- Apertures are 225 x 225
- Located 127mm from top edge to top of glazing bead
- Located centrally in the door
- Located 127mm between vision panel glazing beads
Please note FD30 approved vision panels can only be added to 44mm doors.
Please note FD60 approved vision panels can only be added to 54mm doors.
