16G Vision Panel
The 16G is a popular, DDA approved vision panel.

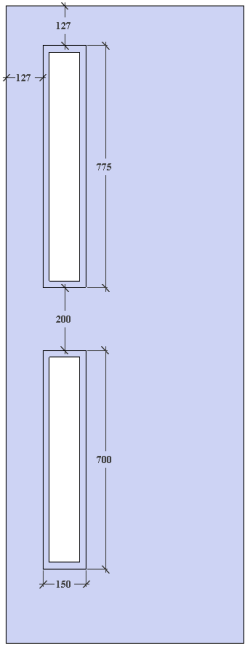

- Top Aperture is 775 x 150
- Bottom Aperture is 700 x 150
- Located 127mm from top edge to top of glazing bead
- Located 127mm from side edge to side of glazing bead
- Located 200mm between vision panel glazing beads
Please note FD30 approved vision panels can only be added to 44mm doors.
Please note FD60 approved vision panels can only be added to 54mm doors.
