Ball Bearing Hinges are engineered for superior strength, durability, and exceptionally smooth operation. Featuring precision-fitted ball bearings between the hinge knuckles, they reduce friction and ensure effortless door movement, even in high-traffic environments.

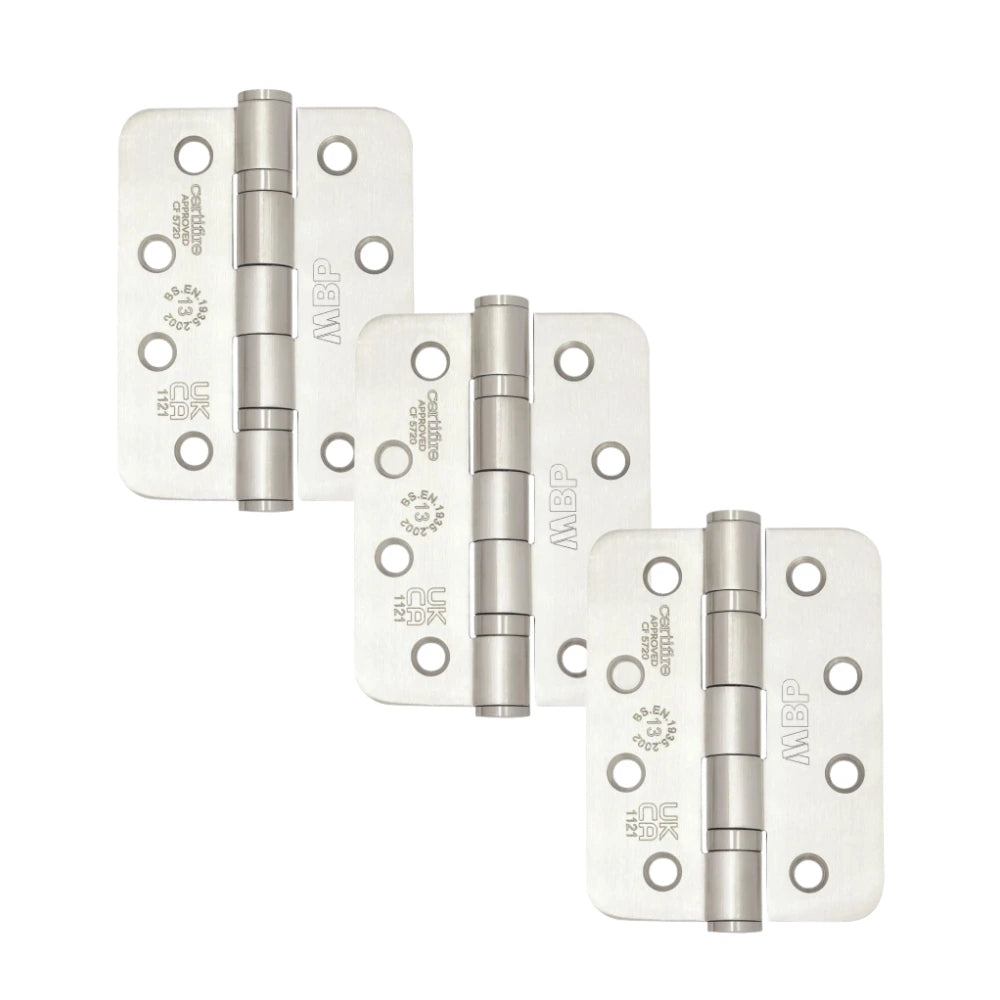

Supplied as a pack of three, they ensure balanced support and secure door alignment during everyday use.

Product Finish Satin Stainless Steel

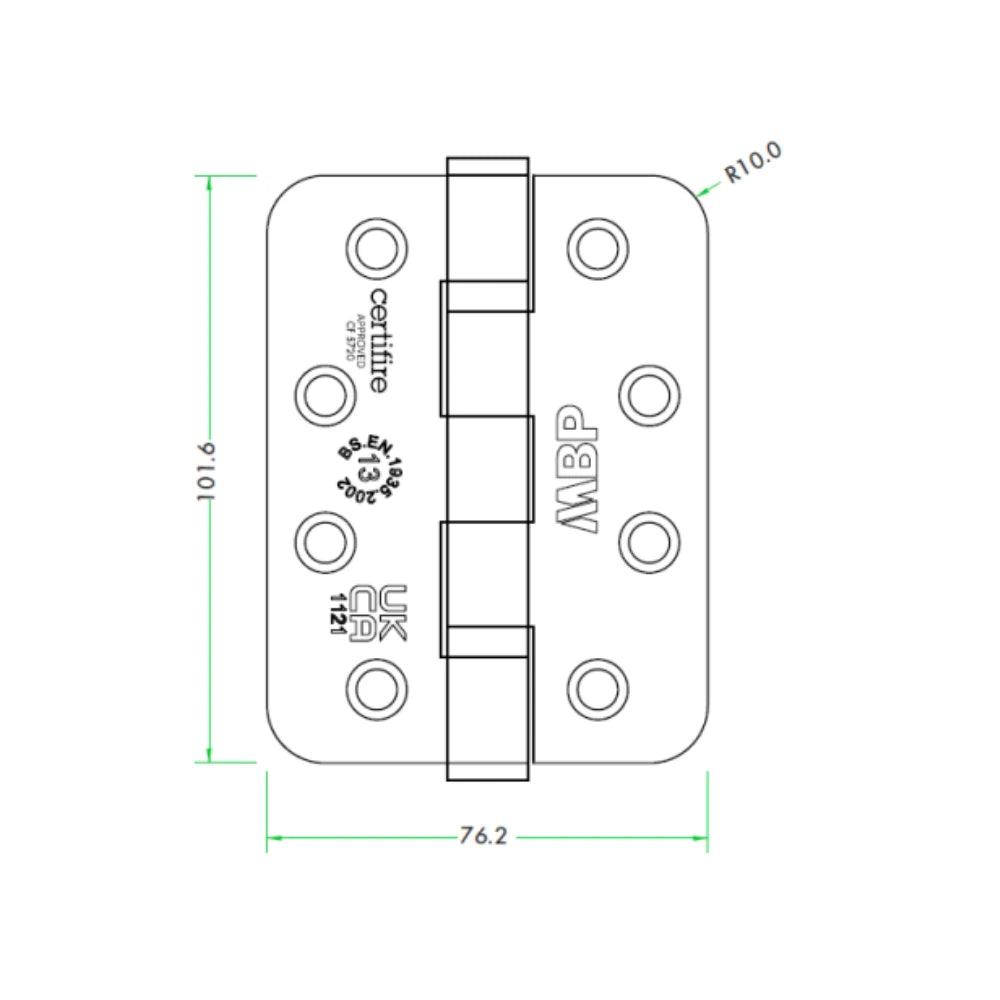

Dimensions: As per dimensional drawing

Data Specification:

Load bearing capacity up to 120kgs
Tested in accordance with and compliant to BS EN 1935 Grade 13
UKCA marked and Certifire approved CF 5720
Fire tested to BS EN 1634-1 suitable for use on fire rated doors
Supplied with uniform radius corners
Manufactured from G201 stainless steel

Specification Advice:

To maintain compliance with the fire standard, it is recommended that  all mortice elements are fitted with the appropriate intumescent packs in  accordance with the door manufacturers’ fire test evidence.
