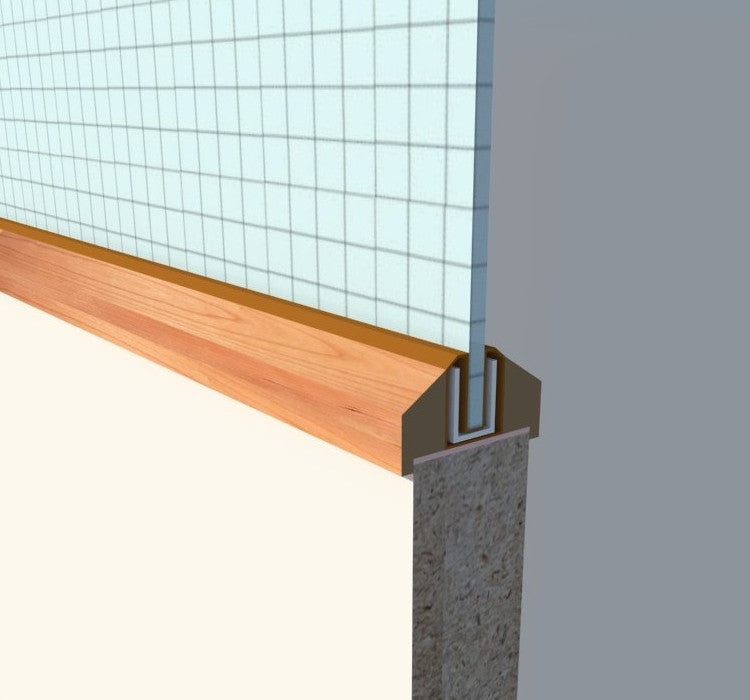

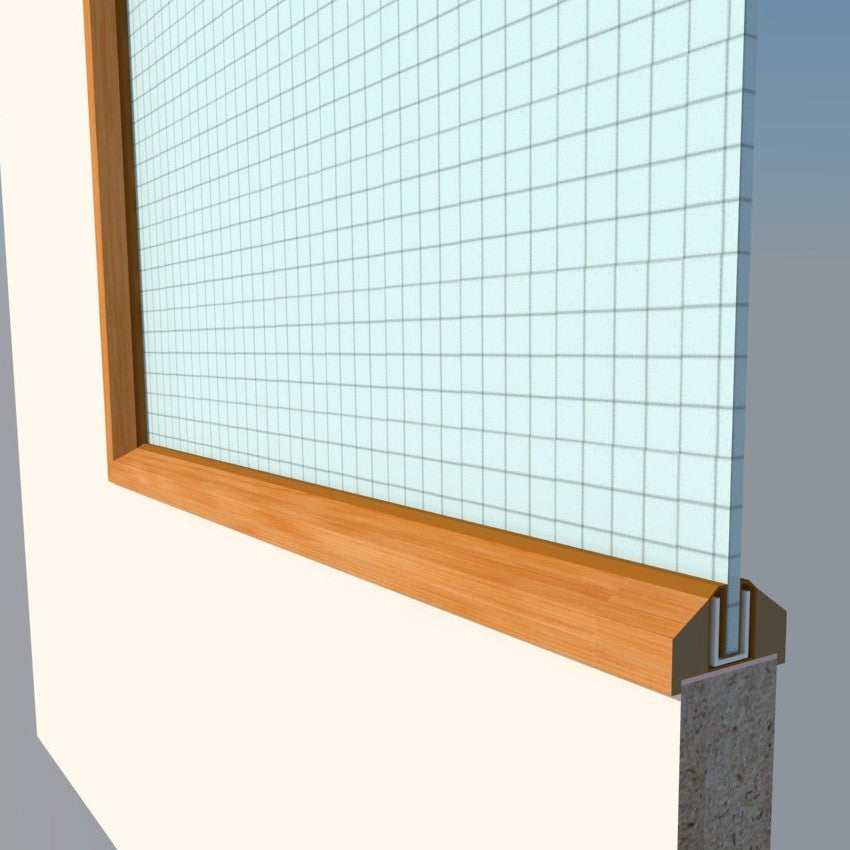

This Cherry foil wrapped bead is certified to glaze vision panels up to 0.54 metres squared (maximum 1552mm in height or 375mm in width)

• This bead is made to suit 54mm doors.
• Can be used with most FD60 glasses, including Pyroguard, Pyrobelite, Pyrosec 7/30, Pyrodur Plus, Pyrostem Wired & Pyroshield Wired Safety glass.
• Bead comes in 2000mm lengths for minimum wastage.

This bead works with our Lorient System 90 gasket. (will be required if using GWPP glass for FD60-rated 54mm doors)
