FED Single Door Escape Lock (Not SBD)

Regular price: £100.63
Sale price: £100.63
Regular price
Unit price: per

The FED Escape Lock Pack provides a complete ironmongery solution for single fire exit doors where secure locking and emergency egress are required. Designed for reliability and compliance, this set...

Product variants

Quantity

Brand: Q Doors

Shipping & Returns

Free shipping and returns available on all orders!
We ship all US domestic orders within 5-10 business days!

Materials

The item with the Committed label has a lower environmental impact because it was made with sustainable materials or methods. We are committed to creating items that combine sustainability with style. Made with recycled cashmere and industril by products.

Size Chart

Care Instructions

Use a soft damp cloth and a drop of mild soap to remove any haze. Air dry.

Description

The FED Escape Lock Pack provides a complete ironmongery solution for single fire exit doors where secure locking and emergency egress are required. Designed for reliability and compliance, this set combines durability, fire performance, and escape functionality, making it suitable for residential blocks, stair cores, and commercial applications.

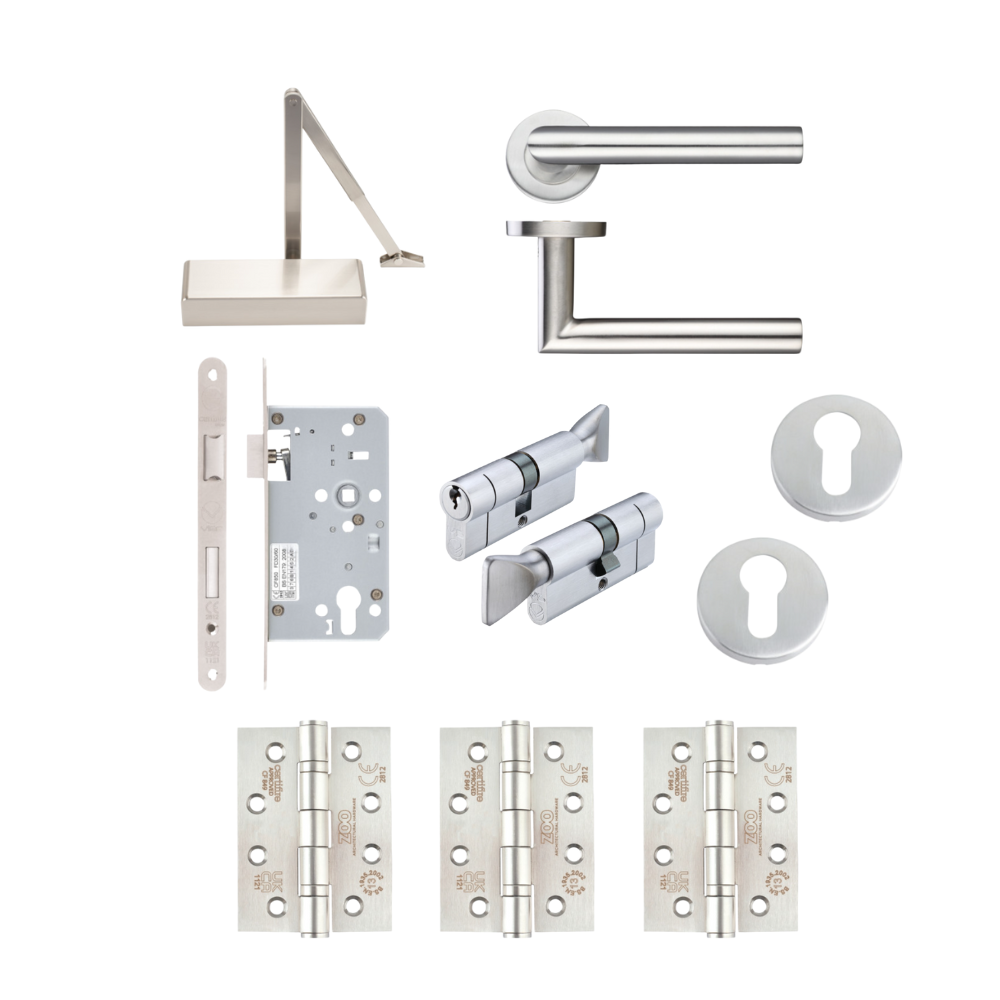

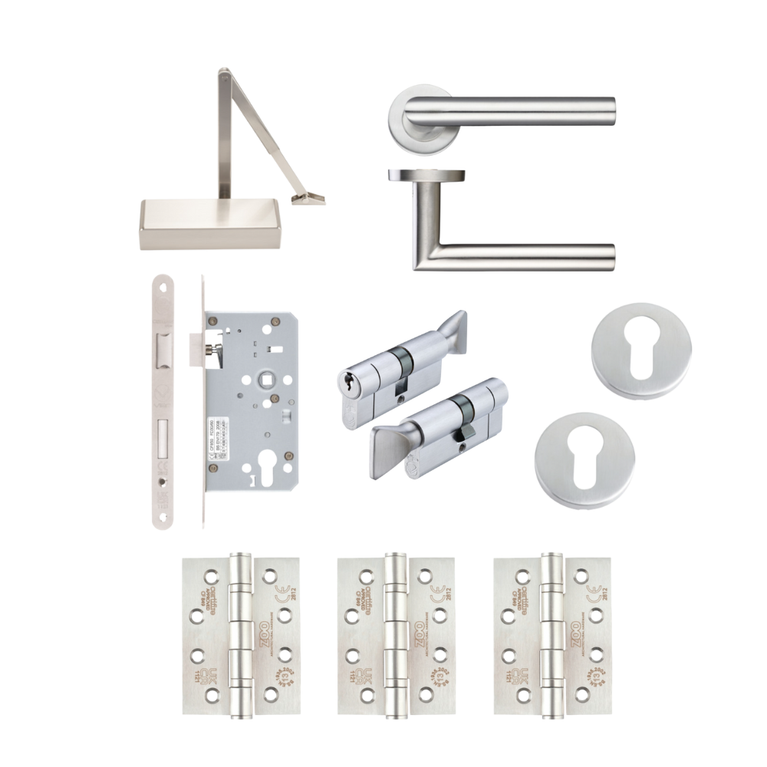

Pack Contents

(x3) 102 x 76 x 3mm SSS G13 BALL BEARING HINGE
(x1) EN2-4 SSS OVERHEAD DOOR CLOSER ADJ. BY TEMPLATE
(x1) 90mm SSS EURO PROFILE MORTICE ESCAPE LOCK TO DIN
(x1) 70mm SCP EURO PROFILE CYLINDER & TURN KTD w/ 3nr KEYS
(x1) 19mm Ø SSS MITRED LEVER HANDLE ON ROSE
(x2) 52 x 8mm SSS EURO PROFILE ESCUTCHEON

Key Features

Complete pack for single FED escape doors (not SBD certified)
Satin Stainless Steel finish – durable, functional, and modern
Fully tested and compliant with UK & European fire and security standards
The escape lock system allows secure locking with emergency egress
All essential components supplied in one pack for convenience

Technical Details
102 x 76 x 3mm SSS G13 BALL BEARING HINGE

Dimensions: 102 x 76 x 3mm
Grade 13, tested to BS EN 1935
Constructed from Grade 201 Stainless Steel
Fire-tested – suitable for 30 & 60-minute timber doors

EN2-4 SSS OVERHEAD DOOR CLOSER ADJ. BY TEMPLATE

Power size EN 2–4 selectable by template
Aluminium scissor arm / steel construction
Max door weight: 80kg (pull side), 60kg (push side)
Max door width: 1100mm (pull side), 950mm (push side)
Tested to BS EN 1154:1997
Fire-tested to BS EN 1634-1 – suitable for up to 120-minute timber fire doors
UKCA & CE marked (Certificates AD7993 & AD8001)
CERTIFIRE approved (Certificate CF6103)
Semi-radiused cover

90mm Satin Stainless Steel Euro Profile Mortice Escape Lock (DIN Standard)

Certified to BS EN 179:2008
60mm backset, 72mm c/c spacing
Grade 304 Stainless Steel forend, latchbolt, and deadbolt
Radius profile design with anti-rattle strike
Grip-tight follower for secure operation
Compatible with a wide range of lever designs

70mm Satin Chrome Plate Euro Profile Cylinder & Turn (KTD) with 3 Keys

Fire-rated for 30–60-minute doors
Anti-drill, anti-pick, break-off protection
Supplied keyed to differ, keyed alike, or as part of a master key system
Versatile keying options for security management

19mm Ø Satin Stainless Steel Mitred Lever Handle on Rose

Modern mitred lever design with 19mm diameter
52 x 8mm round sprung rose
Constructed from Grade 201 Stainless Steel
Suitable for 35–54mm door thickness
Tested to BS EN 1634-1

52 x 8mm Satin Stainless Steel Euro Profile Escutcheon

52mm push-on rose with fixing screws supplied
Constructed from Grade 201 Stainless Steel
Tested to BS EN 1634-1
