Stair Core Single Door Unlocked

Regular price: £76.54
Sale price: £76.54
Regular price
Unit price: per

The Stair Core Pack – Single Door (Unlocked) provides all the required ironmongery for fitting a compliant stair core access door. Designed with safety, durability, and fire performance in mind,...

Product variants

Quantity

Brand: Q Doors

Shipping & Returns

Free shipping and returns available on all orders!
We ship all US domestic orders within 5-10 business days!

Materials

The item with the Committed label has a lower environmental impact because it was made with sustainable materials or methods. We are committed to creating items that combine sustainability with style. Made with recycled cashmere and industril by products.

Size Chart

Care Instructions

Use a soft damp cloth and a drop of mild soap to remove any haze. Air dry.

Description

The Stair Core Pack – Single Door (Unlocked) provides all the required ironmongery for fitting a compliant stair core access door. Designed with safety, durability, and fire performance in mind, this pack is ideal for timber doors in commercial and residential buildings where an unlocked configuration is required.

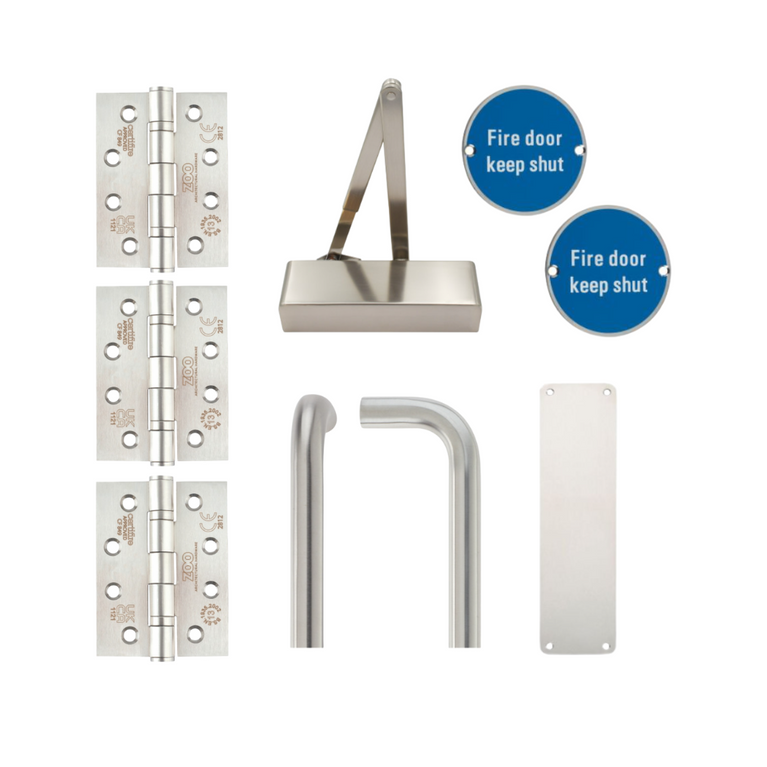

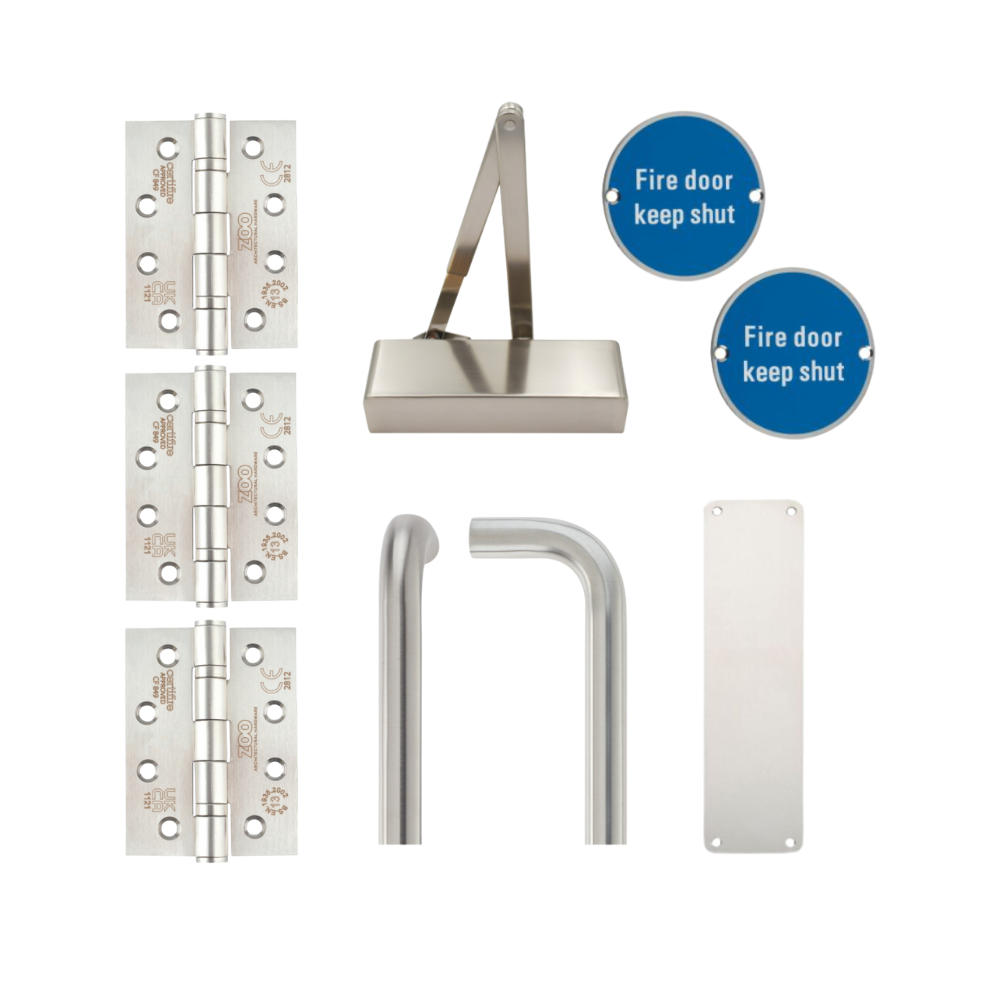

Pack Contents

(x3) 102 x 76 x 3mm SSS G13 BALL BEARING HINGE
(x1) EN2-4 SSS OVERHEAD DOOR CLOSER ADJ. BY SPRING
(x1) 300 x 19mm Ø SSS 'D' PULL HANDLE
(x1) 350 x 76mm SSS PUSH PLATE w/ RADIUS CORNERS
(x2) 76mm Ø SSS 'FIRE DOOR KEEP SHUT' SIGN

Key Features

Complete ironmongery solution for stair core single doors
Satin Stainless Steel finish – robust and modern
Fully tested and certified to UK & European fire and safety standards
Designed for high-traffic use in commercial and residential environments
All essential components supplied in one pack

Technical Details
102 x 76 x 3mm SSS G13 BALL BEARING HINGE

Dimensions: 102 x 76 x 3mm
Grade 13, tested to BS EN 1935
Constructed from Grade 201 Stainless Steel
Fire-tested – suitable for 30 & 60-minute timber doors

EN2-4 SSS OVERHEAD DOOR CLOSER ADJ. BY SPRING

Power adjustable EN 2–4 by spring
Scissor arm/steel construction
Tested to BS EN 1154:1997
Fire-tested to BS EN 1634-1 – suitable for 30, 60, 90 & 120-minute timber fire doors
UKCA & CE marked (Certificates AD7792 & AD7994)
CERTIFIRE approved (Certificate CF6103)
Semi-radiused cover
Max door weight: 80kg (pull side), 60kg (push side)
Max door width: 1100mm (pull side), 950mm (push side)

300 x 19mm Ø SSS 'D' PULL HANDLE

Length: 300mm
19mm tubular design
Constructed from Grade 304 Stainless Steel
Tested to BS EN 1634-1

350 x 76mm Satin Stainless Steel Push Plate

Radius corner design
Protects door surfaces in high-traffic areas

76mm Ø Satin Stainless Steel ‘FIRE DOOR KEEP SHUT’ Sign

Engraved fire safety signage
Clearly indicates mandatory fire door use
